DC PoE

Specifications:

Standards: IEEE802.3/IEEE802.3u standards (10/100/1000Base-T)

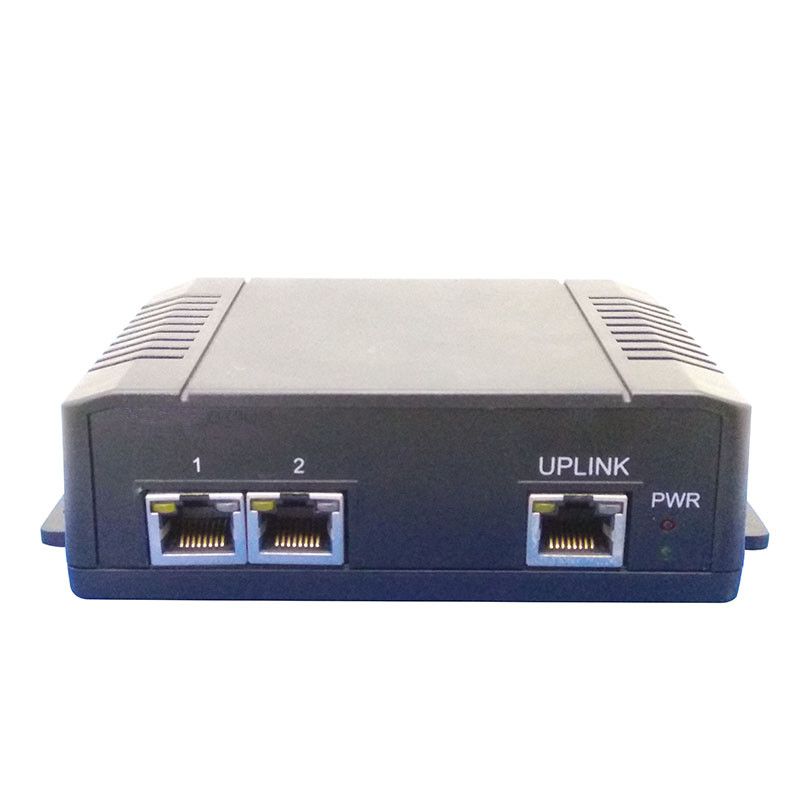

Port: 3 ports with 2 PoE (PSE mode B), supports auto-crossover and -polarity
Transmission speed: 100Mbps (100Base-T), 10Mbps (10Base-T) automatic negotiation
Switch technology: store-and-forward
Protocols: CSMA and CD
Flow control: IEEE80 2.3x (full-duplex) and back pressure (half-duplex)
Data transmission rate: 148,800pps for 100Base-T and 14,880pps for 10Base-T
Address table: 1K MAC and self-learning
Connector: RJ-45
PoE port: 1 to 2 and automatic power management
Pin assignment: TX (1, 2), RX (3, 6), V + (4, 5) and V- (7, 8)
Maximum PoE power: per port 35W
PoE disconnect mode: AC disconnect
PoE automatic detection: IEEE802.3 at
PoE protection: over-temperature, over-current and over/under voltage
LED: link/activity (green om/green blinking every 43ms at 100Mbps/green blinking every 120ms at 10Mbps)
PoE (yellow) on-PD detect and blinking-error detect
Power: green normal and red alarm
Power input: 40 to 60V DC
Power consumption: 5W without PD loading
Operating temperatures: -20 to 70°C
Operating humidity: 90% RH and non-condensing
Storage temperatures: -40 to 85°C
Dimensions: 40 x 118 x 90mm
