DC PoE

5-port Gigabit PoE Switch/Extender, 10-57V DC Input and 2A/Port PoE Output

Specifications:

Standards: IEEE802.3/IEEE802.3u standards (10Base-T, 100Base-T and 1000Base-T)

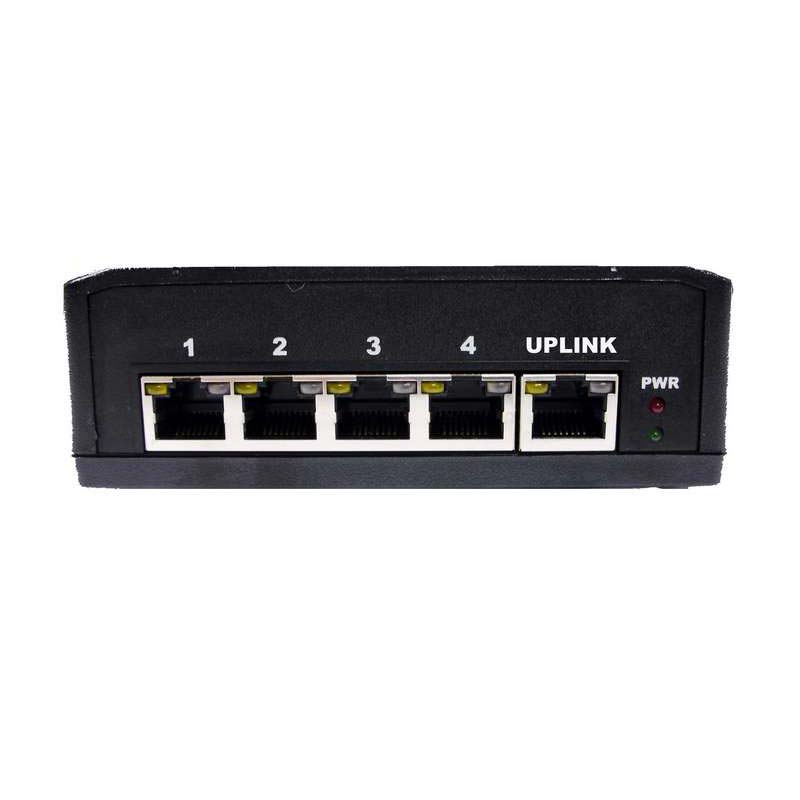

Port: five-ports with four PoE (PSE), supports auto-crossover and auto-polarity
Transmission speed: 100Mbps (100Base-T), 10Mbps (10Base-T) automatic negotiation
Switch technology: store-and-forward
Protocols: CSMA/CD
Flow control: IEEE80 2.3x (full-duplex) and back pressure (half-duplex)
Data transmission rate: 148,800pps for 100Base-T, 14,880pps for 10Base-T
Address table: 1K MAC and self-learning
Connector: RJ45
PoE port: port 1 to 4, automatic power management
Pin assignment: TX (1, 2), RX (3, 6), V + (4, 5), V - (7, 8)
Maximum PoE power: per port 2A
PoE disconnect mode: AC disconnect
Non-802.3af
PoE protection: over-temperature, over-current, and over/under voltage
LED: link/activity (green om/green blinking every 43ms at 100Mbps/green blinking every 120ms at 10Mbps)
PoE (yellow) on-PD detect and blinking-error detect
Power: green normal and red alarm

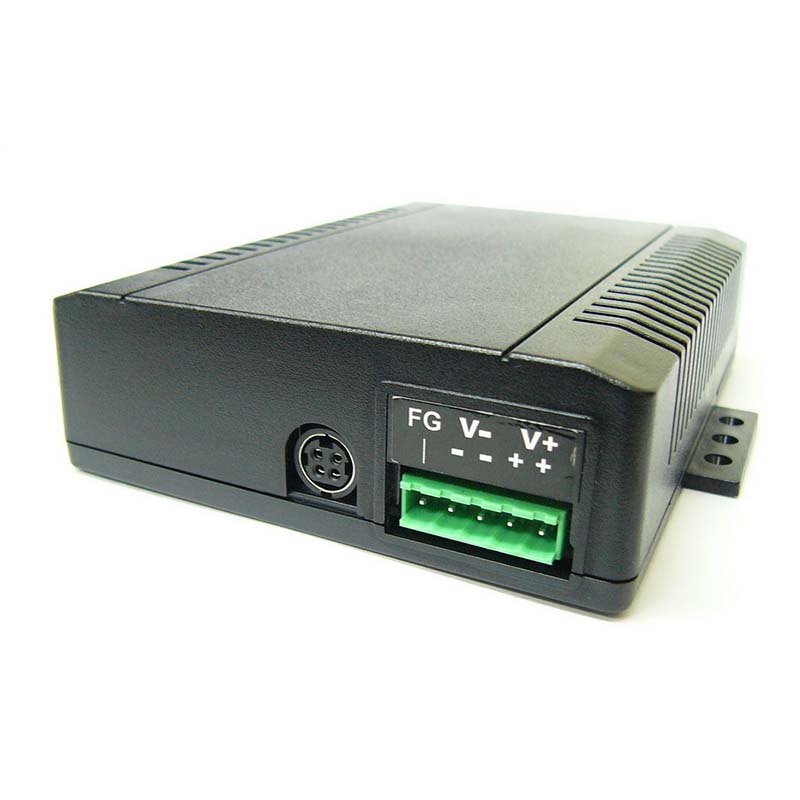

Power input: 12 to 58V DC
Power consumption: 5W without PD loading
Operating temperatures: -10 to 70°C
Operating humidity: 90% relative humidity, non-condensing
Storage temperatures: -40 to 65°C
Dimensions: 40 x 116 x 159mm
