AC PoE

Technical Specifications

Standards IEEE802.3/IEEE802.3u standards
(10Base-T/100Base-T/100Base-FX)
Ports 4 ports with 4 PoE(PSE), supports auto-crossover &
auto-polarity, 1 port with the fiber connector

Transmission speed 100Mbps(100Base-T), 10Mbps(10Base-T) Auto-negotiation

Switch technology store-and-forward

Protocols CSMA/CD

Flow control IEEE802.3x(full-duplex),back pressure(half-duplex)
Data transmission rate 148800pps for 100Base-T, 14880pps for 10Base-T
Address table 1K MAC address table, self-learning
Connector RJ-45, SFP connector (for fiber optic port)
SFP: Fast Ethernet 100 Base-FX Complaint Slot for standard SFP transceiver
(Duplex LC Connector)

Fiber optic port
*Fiber optic port: SFP
*Port speed 100Base-FX(100Mbps),full duplex
*Wave length 1310nm
*Max TX power -14dBm(mm), -8dBm(sm)
*Min TX power -19dBm(mm), -15dBm(sm)
*Min RX sensitivity -32dBm
*Max RX power -14dBm(mm),-8dBm(sm)
*Link budge 13dB(mm),17dB(sm)
*Fiber multi-mode(mm) typical 50 or 62.5/125um
*Fiber single-mode(sm) typical 9 or 10/125um

*Fiber max. distance 2km(mm),15km(sm)
Note: Other fiber connector and transmission distance are available.
PoE port Port 1-4, auto power management
Pin assignment: TX(1,2), RX(3,6), V+(4,5), V-(7,8)
Maximum PoE power Per port 56V 35W
PoE disconnect mode DC disconnect
PoE auto detection IEEE802.3af/at
PoE protection Over-temperature, over-current, over/under voltage
LEDs *Link/Activity (Green ON/ Green Blinking every 43ms @100Mbps/
Green Blinking every 120ms @10Mbps)
*PoE(Yellow) On-PD detect, Blinking-error detect)
*POWER Green-normal, Red-alarm

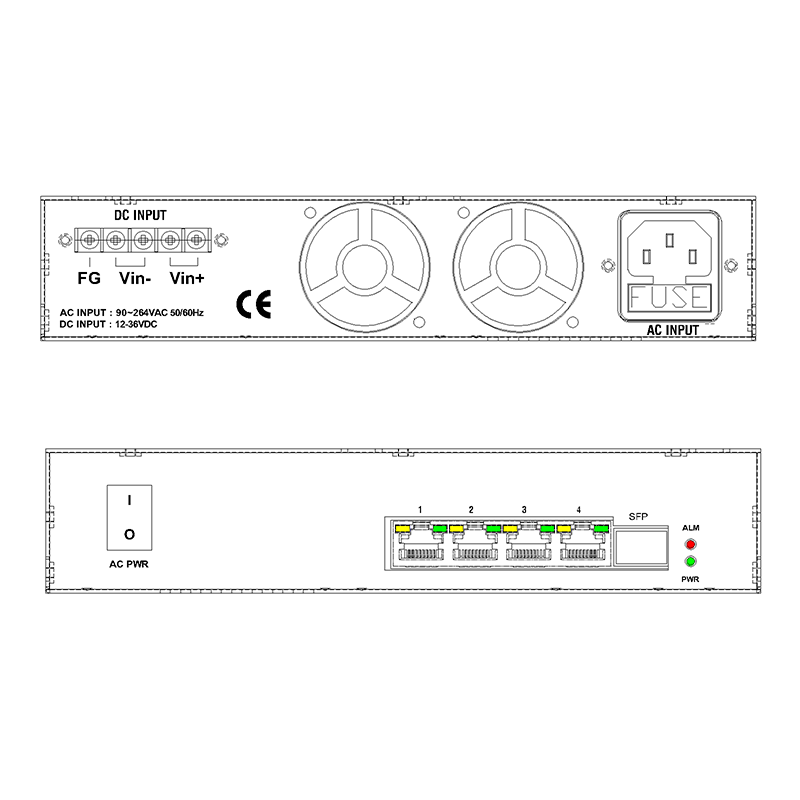

Power input AC 90-264VAC, 47-63Hz.
DC 24V (12V~36V).
Power consumption 5W without PD loading
Operating temperature -20℃~ 85℃
Operation humidity 90% relative humidity, non-condensing
Storage temperature -55℃~+105℃
Dimension 44mm(H)x210mm(W)x199mm(D)
19” rack mount available with brackets
